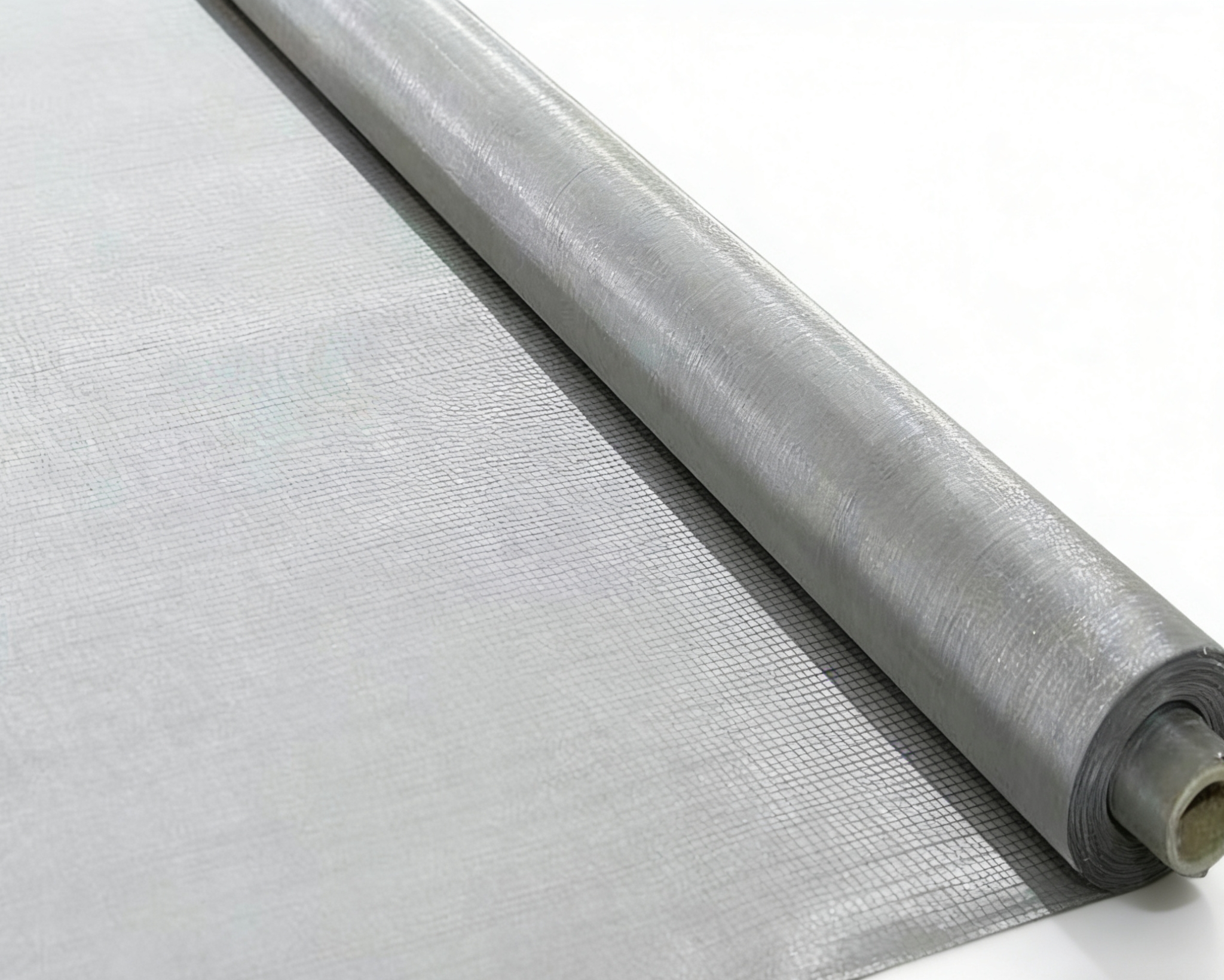

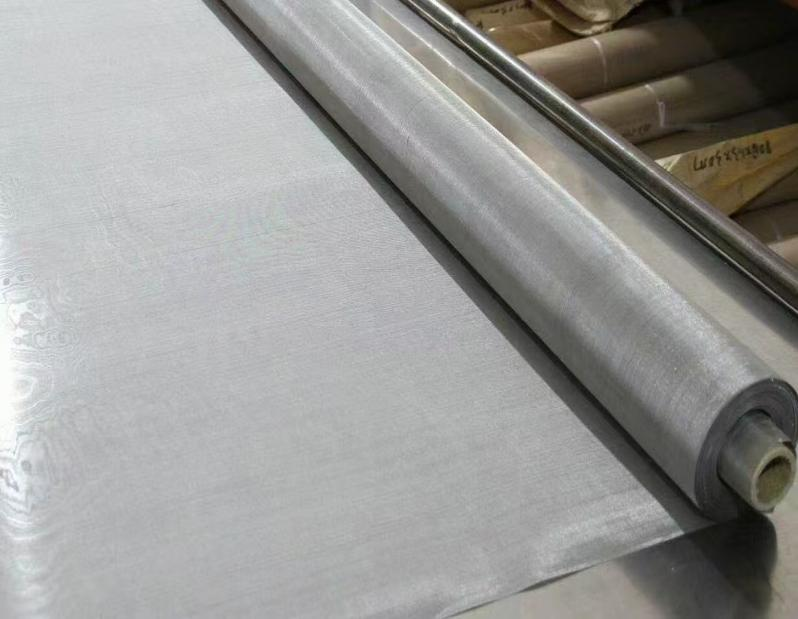

Stainless Steel Plain Weave Mesh

Product Overview

Stainless steel plain weave mesh is a classic in the field of metal wire mesh, woven using an alternating top-and-bottom interweaving technique of warp and weft wires. It features a smooth surface, stable structure, and uniform pore size, offering excellent breathability and filtration precision. As a highly versatile base material, it is widely used in high-end applications such as industrial filtration, screening, protection, and architectural decoration.

Core Craftsmanship

• Precision Weaving: High-precision CNC looms ensure uniform alignment of warp and weft threads, with no skipped threads, broken threads, or shrinkage holes.
• Surface treatment: After acid pickling, passivation, and polishing, the surface is mirror-smooth, free of oil stains and rust, significantly enhancing corrosion resistance.
• Material Selection: Premium stainless steel wires including SUS304 and SUS316L are meticulously chosen to ensure long-term stability in harsh environments.

Product Advantages

1. Structural balance: The mesh surface exhibits high flatness with minimal aperture tolerance, ensuring precise and controllable filtration and sieving performance.
2. Superior strength: The interwoven points are firmly secured, exhibiting high tensile resistance, minimal deformation, and extended service life.
3. Excellent weather resistance: With outstanding resistance to acid, alkali, and salt corrosion, it is suitable for various complex indoor and outdoor environments.
4. Flexible application: Can be customized through trimming, bending, or welding to meet diverse non-standard requirements.

Technical Parameters

• Material: SUS201 / SUS304 / SUS316 / SUS316L
• Weaving method: plain weave
• Wire diameter range: 0.02mm-2.0mm
• Mesh size range: 1 mesh-635 mesh
• Standard width: 0.5m-3.0m (customizable width)
• Standard lengths: 30m / 50m (can be cut to size)

Application Areas

• Industrial filtration: Liquid and gas filtration for industries including chemical, petroleum, water treatment, and pharmaceutical.

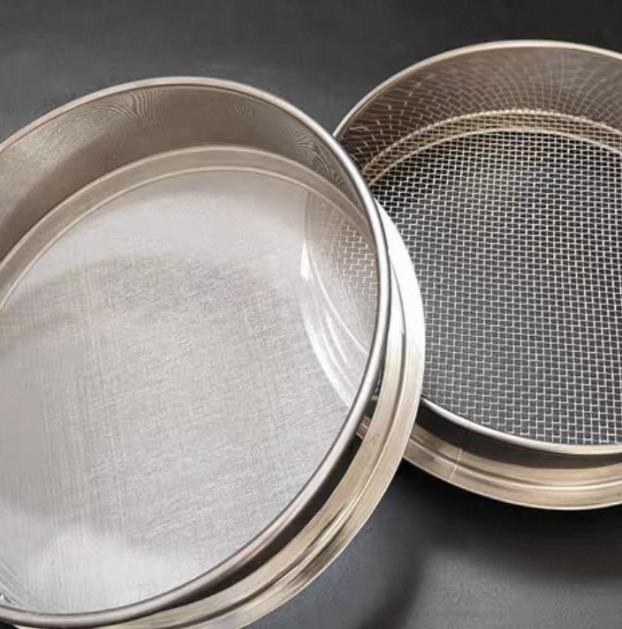

• Mining screening: Grading and screening of granular materials such as ores, coal, and grains.
• Protective finishes: door/window protection, balcony railings, building ceilings, interior partitions.
• Electronics: speaker covers, heat dissipation nets, and protective nets for precision instruments.
