Stainless Steel Mesh for Mat

Product Overview

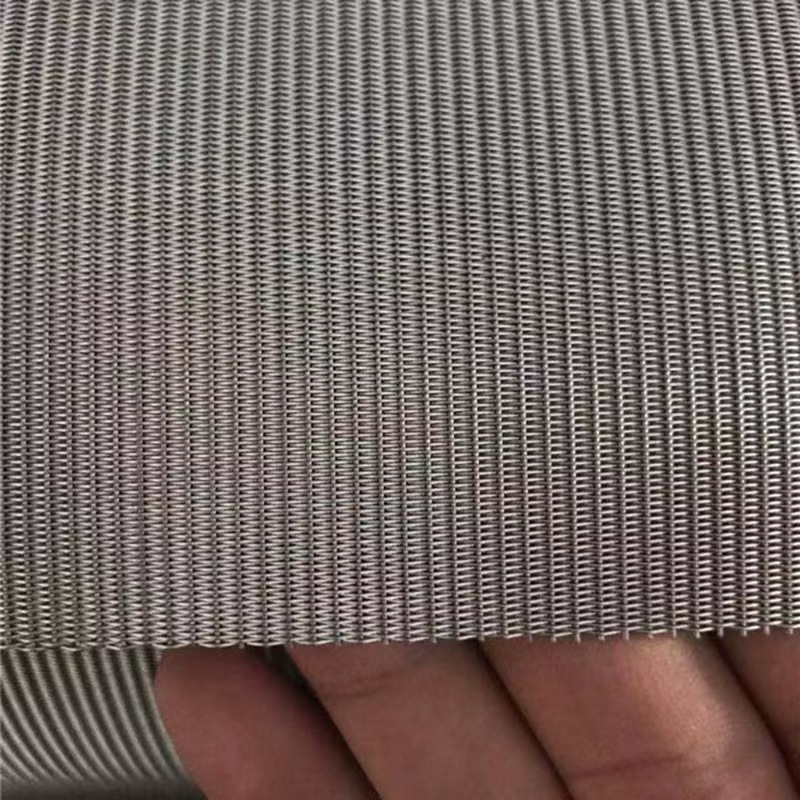

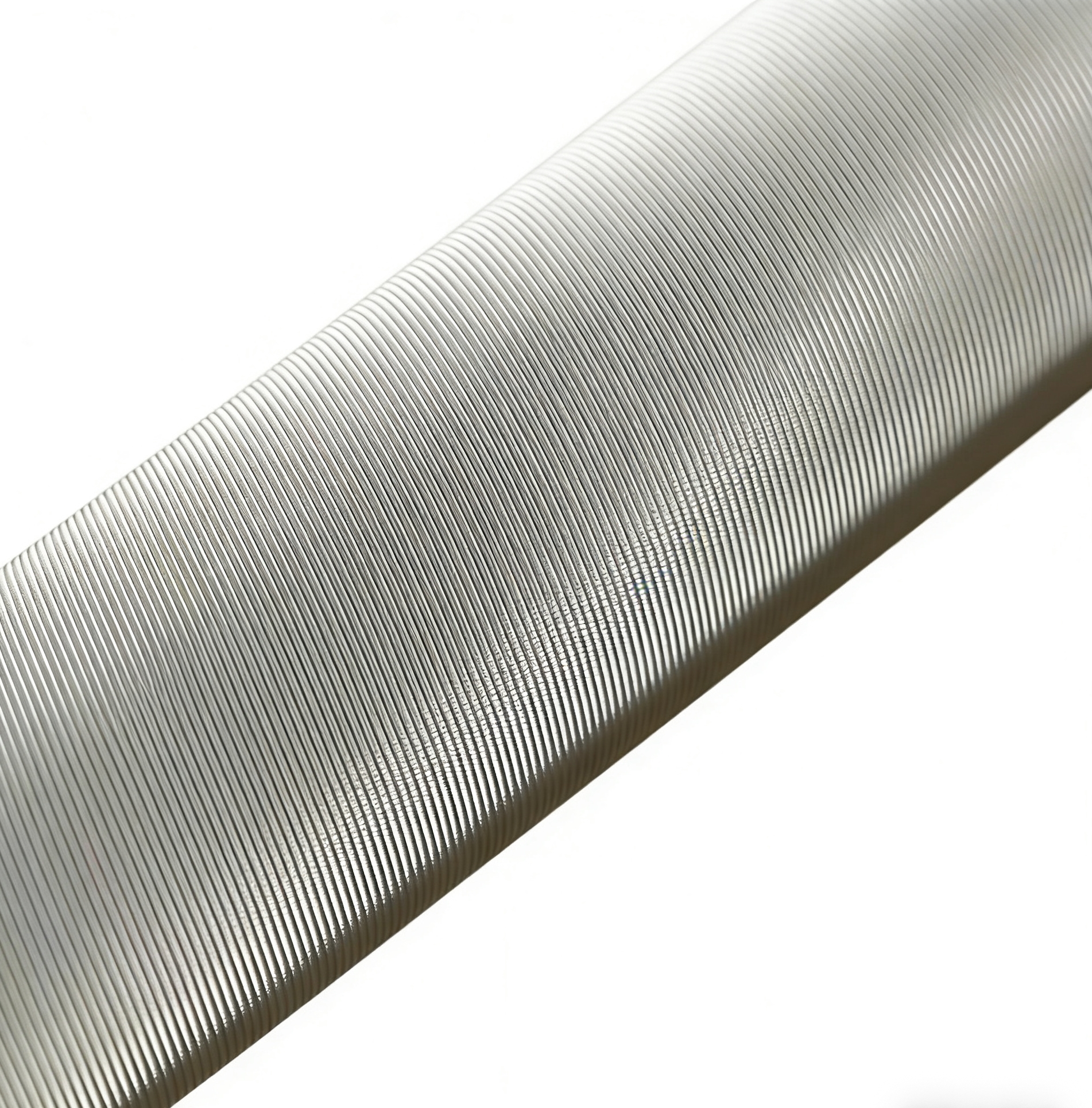

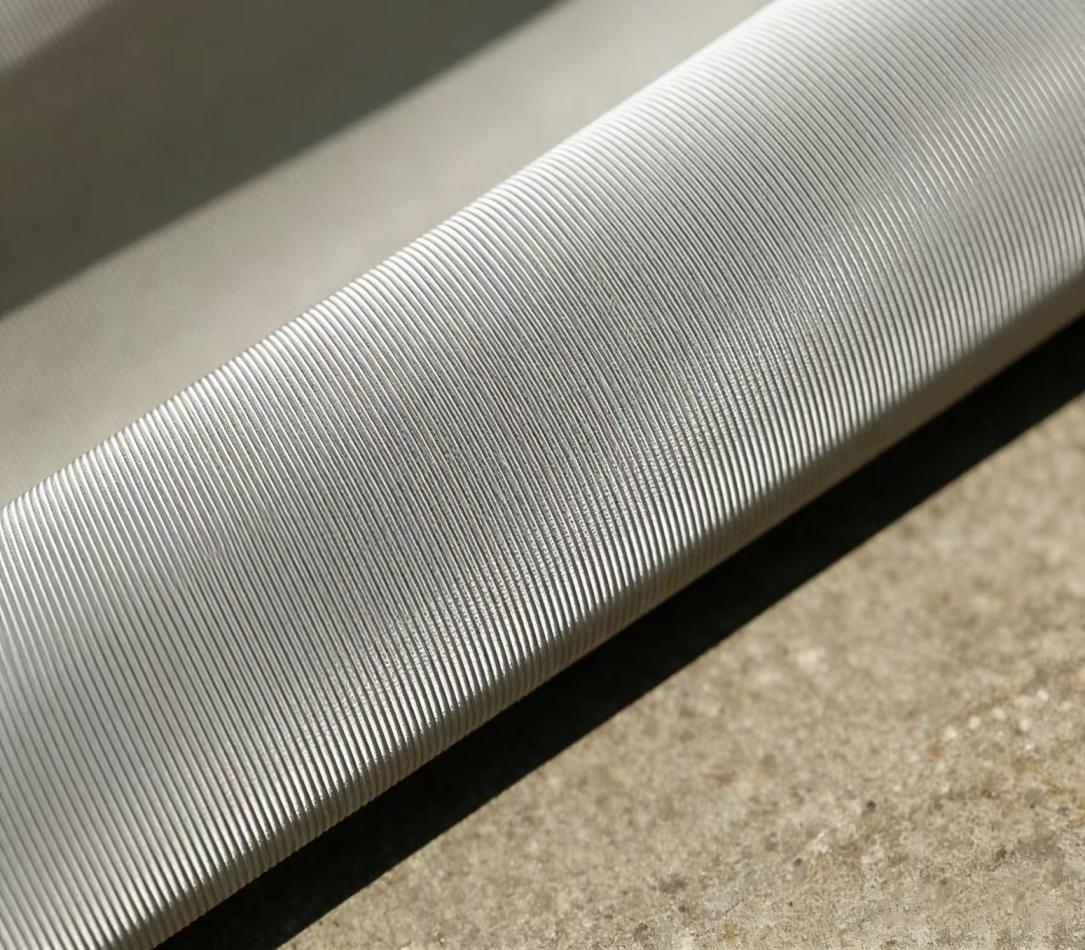

Stainless steel woven mesh (also known as twill woven mesh) is a high-density wire mesh produced by interweaving warp and weft threads in a 2-up 1-down or multi-layered pattern. It features a dense surface, low porosity, high filtration precision, and excellent wear resistance and compressive strength. The mesh is categorized into “standard woven mesh” and “fine-textured woven mesh.” The fine-textured type can achieve ultra-fine particle filtration, making it the preferred material for high-end precision filtration applications.

Core Craftsmanship

• Weft-fine weaving: This technique employs a multi-strand warp and weft interweaving process, where warp threads are tightly arranged and weft threads are embedded beneath the warp threads, resulting in a smooth and even surface.
• Bidirectional positioning: The weaving process employs a tension control system to prevent web skewing or deformation, while maintaining uniform hole aperture height.
• Thickening treatment: Some specifications feature thickened weft yarn to enhance the mesh’s compressive strength and mechanical durability.

Product Advantages

1. Ultra-high precision: Capable of weaving micrometer-level pores, with filtration efficiency significantly superior to conventional plain weave nets.
2. Smooth surface: The warp threads float on the surface, resulting in a flat and smooth mesh that is less prone to clogging and easier to clean.
3. Pressure and wear resistance: The special woven structure provides excellent compressive performance, making it suitable for high-pressure filtration applications.

4. High contaminant capacity: The deep filtration structure accommodates more impurities, extending the service life of the filter.

Technical Parameters

• Material: SUS304 / SUS316 / SUS316L (recommended)
• Weaving techniques: mat weaving (plain weave, twill weave, jacquard weave)
• Thread diameter range: warp 0.01mm-0.1mm | weft 0.1mm-0.5mm
• Mesh size range: 20 mesh to 2000 mesh
• Standard width: 0.3m-1.5m
• Standard length: 10m-30m

Application Areas

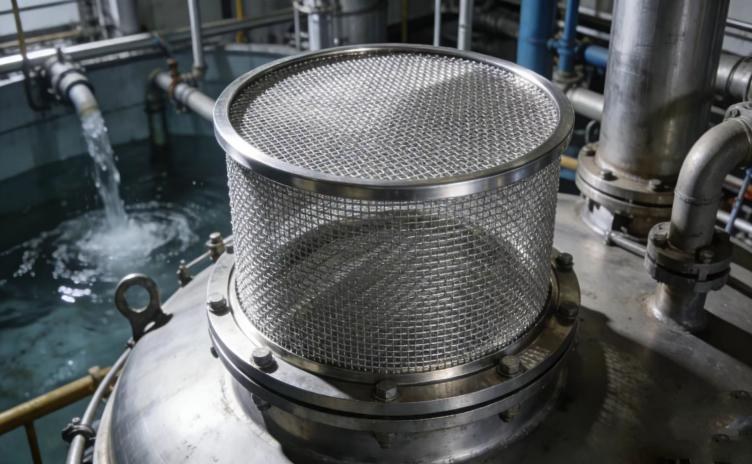

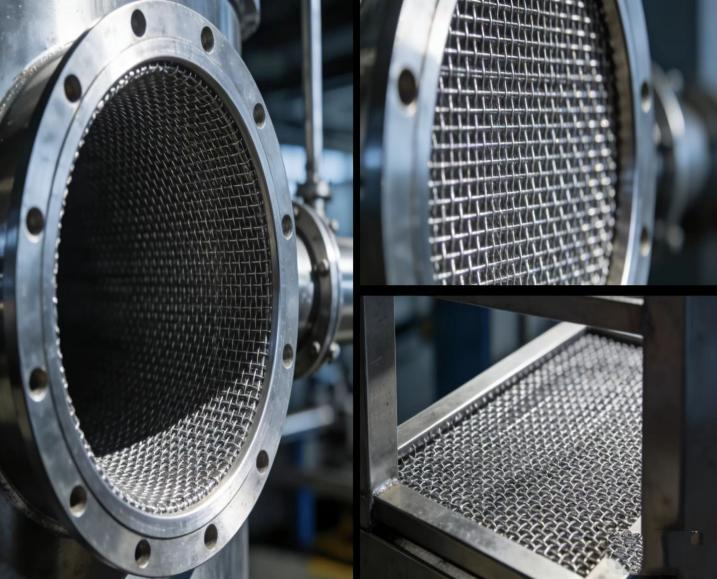

• Precision filtration: Ultra-pure water and gas filtration for precision instruments, biomedicine, and related fields.

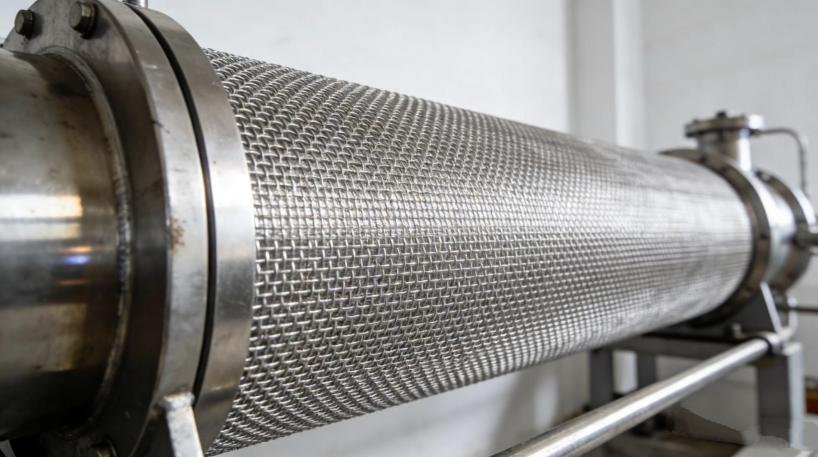

• High-pressure filtration: Purification of high-pressure fluids including hydraulic oil, lubricating oil, and fuel oil.
• Protective shielding: electromagnetic shielding, RF shielding, and dustproofing for precision equipment.
